PiezoRobotics Bolt


PiezoRobotics Bolt

The PiezoRobotics’ pr.Bolt is a mechanical fastener with an integrated piezoelectric sensor for the measurement of axial dynamic forces. It is the next generation of highly precise and highly sensitive force sensors.

USD 790.00


Delivery in 6-8 Weeks

The PiezoRobotics’ pr.Bolt is the evolution from simple strain gauge load cells, benefiting from more robust electronics and better connectivity. By using the provided signal conditioner, the pr.Bolt converts an input dynamic mechanical force into an analog voltage signal by means of a piezoelectric material, useful in applications that require dynamic force measurement.

Key Features

  • Integrated piezoelectric force sensor

  • Tension and compression axial force measurement

  • Low voltage output signal

  • Broadband frequency response

Technical Specifications

Bolt Specification




1.366 mV/N

@ 50 Hz

(see calibration data)

Measurement Range

±10 kN0-p

Frequency Range

1 Hz to 5000 Hz

Phase Response (±5°)

1 Hz to 5000 Hz



Maximum Force

±10 kN0-p

Maximum Mounting Torque

100 Nm

for M14

Signal Connector Type

10-32 UNF Male



d ≥ M14 and L ≥ 60 mm



Class 10.9 Alloy Steel

Operating Temperature

-40°C to +85°C

Signal Conditioner



Power Supply

5.0 V / 0.2 A

Output Voltage Range

±15 V0-p

DC offset = 0 V

Power Connector Type

DC 3.5x1.3mm

Signal Connector Type

BNC Female


Vibration Monitoring, Structural Health Monitoring, Load Data Acquisition, Vibration Isolation, Active Vibration Control, Process Control and Automation.

Electrical Connection

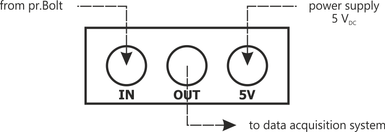

The signal conditioner of the pr.Bolt is powered using a 3.5x1.3mm DC plug and a 5 VDC USB power supply. The cable coming from the pr.Bolt is connected to the input channel (10-32 UNF to BNC). The analog output signal of the signal conditioner can be connected to an ADC or a data acquisition system by a BNC cable.

Mechanical Mounting and Sensor Operation

The pr.Bolt can substitute any traditional bolt in a mechanical structure, as long as the maximum mounting torque is respected. This will allow the pr.Bolt to quantify the axial dynamic forces going through the bolted joint.

The pr.Bolt has a piezoelectric element integrated within the body of the bolt. A dynamic force along the axis of the bolt will cause a dynamic strain to appear within the bolt material and also in the piezoelectric element, which will be converted into a dynamic electric charge. This charge is then amplified by the signal conditioner, which outputs an analog voltage signal. By using the correct calibration data, the axial dynamic force of the bolted joint can be measured. A positive output voltage signal from the signal conditioner means the pr.Bolt is in tension. A negative voltage means it is in compression.

The force signal can be used in applications such as vibration monitoring or active force control in a feedback loop. One possible application for the pr.Bolt is to measure the vibration transmission through a rubber element used for vibration isolation. The rubber element is usually bolted across two sides: a fixed part and a part with a vibration source. The pr.Bolt is therefore able to measure the axial dynamic forces going through the rubber element.

Calibration Data

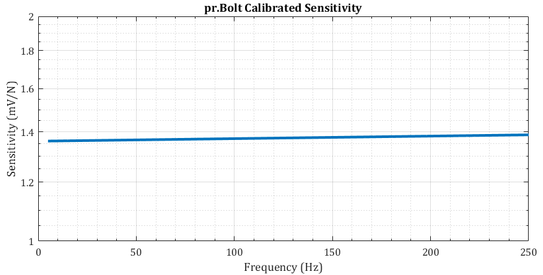

The analog voltage signal generated by the signal conditioner depends on the input mechanical force along the pr.Bolt (waveform, amplitude and frequency). The plot below shows a typical calibration spectrum delivered with each pr.Bolt. The sensitivity is measured when the pr.Bolt is fixed on one side, and allowed to vibrate on the other. A sinusoidal waveform with constant amplitude across all frequencies is used.


The preferred construction of the pr.Bolt is done with a standard metric hexagon flange bolt (DIN6921) with a diameter of at least 14 mm and a length of at least 60 mm. We can modify this according to your application.

Quality and Testing

Each pr.Bolt is individually tested. The calibration data including the sensitivity in the frequency domain is provided with each delivery.


PiezoRobotics has the capability to customize the pr.Bolt according to your specific application and requirements. We can modify the dimensions, materials, connectors or other parameters, and integrate with your electronics and IoT Network. We also guarantee much lower prices for high volume purchases. Please contact us for further details.

Package Content

1 x pr.Bolt

1 x Signal Conditioner

1 x 10-32 UNF to BNC Cable 2m

1 x 5V USB Power Supply Cable
