PiezoRobotics Piezo Amplifier


PiezoRobotics Piezo Amplifier

Our Piezo Amplifier is a high-voltage power supply and linear voltage amplifier for driving high capacitive loads such as piezoelectric ceramics at high frequencies.

USD 390.00

Delivery in 6-8 Weeks

The PiezoRobotics’ pr.Amplifier is the next generation of a high-performance and low-cost amplifier module, with user friendly connectors inspired from consumer electronics, while maintaining the quality of a laboratory equipment. The pr.Amplifier converts a small-amplitude audio-type input signal into a unipolar output voltage of amplitude up to 350 Vp-p, by means of a high-voltage boost converter and a linear amplifier. This is useful in piezoelectric applications that require high voltage and high current drive, such as broadband active vibration control and ultrasonic generators.

Key Features

  • Power supply over USB-C PD

  • Low input voltage, up to 350 Vp-p output voltage

  • Output current up to 0.5 A0-p

  • 40 kHz Bandwidth

Technical Specifications




Supply Voltage

20 VDC over USB-C PD 3.0

Quiescent Current

0.4 A

Quiescent Power = 8 W


126 (42 dB)

@ 1kHz (see plot)

Slew Rate

50 V/µs

Input Voltage Range

±1.4 V0-p (1.0 VRMS)

bipolar input

Input DC Offset



Output Voltage Range

0 – 350 Vp-p (123.7 VRMS)

unipolar output

Output DC Offset

175 VDC


Output Current Range

0 – 0.5 A0-p (0.354 ARMS)


Output Power to Load

44 W maximum

see power limitations below

Load Impedance



40 kHz

Output Noise

72 mVRMS

noise below 1 MHz

Power Connector

USB Type-C PD (Power Delivery)

minimum 65 W / 3.25 A

Input Signal Connector

3.5 mm mini audio jack plug

Output Connector

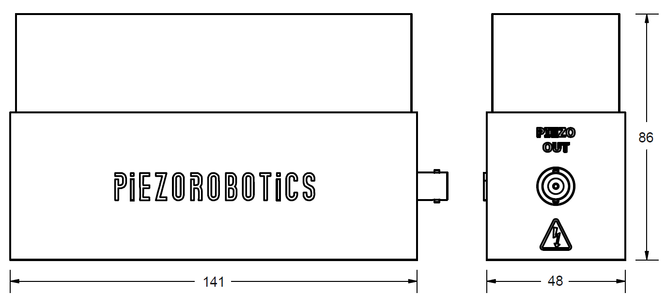

141 x 86 x 48 mm

Operating Temperature

-25°C to +40°C


0.38 kg


Active Vibration Control, Vibration Condition Monitoring, Piezoelectric Ultrasonic Actuators, Ultrasonic Wave Generators.

Electrical Connection

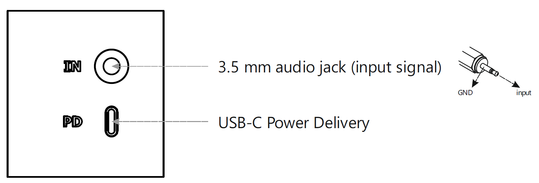

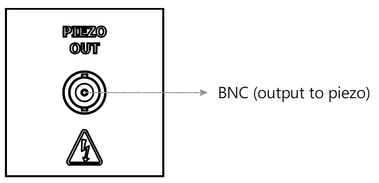

The pr.Amplifier can be powered by a standard USB-C connector and a commercial USB Power Delivery (PD) charger or power supply with an existing output voltage of 20 VDC and a power rating of at least 65 W or a minimum output current of 3.25 A (100 W / 5 A maximum and recommended). The low‑voltage analog input signal is connected through a 3.5 mm audio jack and can be generated by a standard line level source. After amplification, the high-voltage analog output signal can be connected to the piezoelectric load through a standard BNC cable.

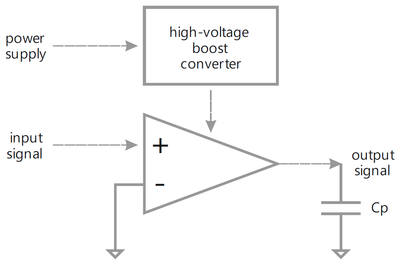

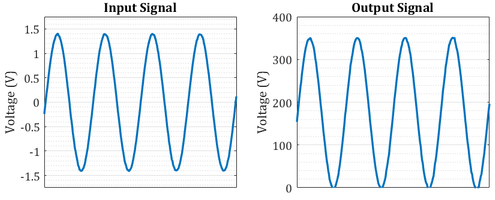

The pr.Amplifier contains a DC/DC high-voltage boost converter, which generates a fixed 350 VDC from the 20 VDC supply voltage. The high-voltage non-inverting linear amplifier has an input voltage range from -1.4 V to +1.4 V with a gain of 42 dB. The load is connected between the output and ground. Bipolar output voltages up to ±175 V0-p are possible with an external AC coupling capacitor.

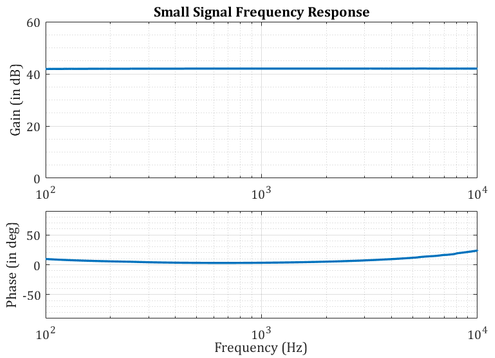

Small Signal Bandwidth

The frequency response of the amplifier with no-load condition is given by the measured plot below:

Output Current and Power Limitations

Considering a sine wave input signal, the peak electrical current required to drive a capacitive or piezoelectric load is given by the following equation:

where Vp-p is the peak-to-peak output voltage, Cp is the effective capacitance of the load and f is the sine wave frequency.

The pr.Amplifier has an internal limiting circuit allowing a maximum output current of 0.5 A0-p. Nevertheless, using the formula above, or preferably by measuring the actual output current to the piezoelectric load, the user should carefully choose the values of Cp, Vp-p and f in order not to exceed the output voltage, current and power maximum ratings. The average power delivered to load can be calculated with measured output voltage and current using the following equation:

The actual maximum output power possibly delivered to the load depends on several parameters such as circuit temperature, boost voltage, signal waveform and load impedance (phase between output voltage and current). The input power supplied to the amplifier can be up to several times higher than the output power supplied to the load.

Overload Protection and Safety

Each pr.Amplifier is individually tested. The measured small signal frequency response is provided with each delivery. The pr.Amplifier has an internal limitation on output voltage and output current, but not on output power. Excessive internal temperatures may damage the amplifier permanently. An external cooling fan is recommended for high power applications.



PiezoRobotics has the capability to customize the pr.Amplifier according to your specific application and requirements. We can modify any electrical specification, dimensions, connectors or other parameters, and integrate it with your own electronics and piezo system. We also guarantee much lower prices for high volume purchases. Please contact us for further details.

Package Content

1 x pr.Amplifier
